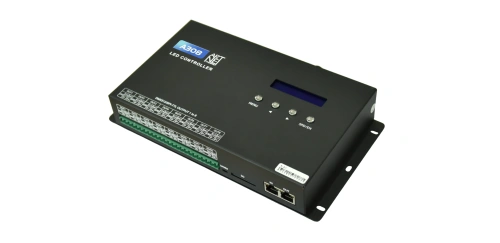

Description
| Technical Specifications | |
|---|---|
| Power supply | AC 100 volts – 240 volts |
| Power consumption | Normal operation < 10 W |
| Network protocols | Art-Net protocols and Seekway protocols |
| Data output | SPI TTL/DMX RS-485 Art-Net protocol: 8 ports × 512 channels × 6 universes Seekway protocol: 8 ports ×3840 channels, 400 units can be connected in series or parallel through a switch |
| Supported LED models | DMX、TM1804、TM1908、TM1934、UCS5603、UCS9812、UCS1903、UCS5603、SM16714P、MT1806/MT16703、GW6312、SM16703P、SM16804PB、SM16709P、SM16711、SM16712P、SM16714PHT、SM16804PB、SM16813P、SN16823E、SM16824E、TM1809、TM1812、TM1903(SM)、TM1903(PTH)、TM1913、TM1914、TM1923、UCS1904、UCS1909B、UCS1912、UCS2603、UCS2903、UCS2904B、UCS2909、UCS2912、UCS8903、UCS8904、WS2811、WS2812、WS2813、WS2818、FW1903、FW1935、GS8205、GS8206、GS8208、GS8512、GS8513、GS8515、JE2815、LB1934A、LX1003、LX3203、P9883/XT1506S、SK6812 |
| Port | 8 ports (3P Terminal Block × 9, Contains a spare) |
| Ethernet | 2 x RJ45 |
| Transmission distance | Category 5e unshielded network cable, 100 meters between controllers. For longer distances, “fiber converter” can be used, up to 5 kilometers. |
| Shell material | Iron |
| Operate | 4 buttons + 1 working indicator light + 2 network status indicators |
| Size | 253 mm ×137 mm × 45 mm (9.96 in× 5.39 in. × 1.77 in.) (L×W×H) |
| Temperature range | -10 degrees Celsius to 70 degrees Celsius (14 degrees Fahrenheit to 158 degrees Fahrenheit) |
| Relative humidity | 5 % to 50 %, non-condensing |
| IP rating | IP20 |
| Warranty | The manufacturer offers a 2-year limited warranty |
