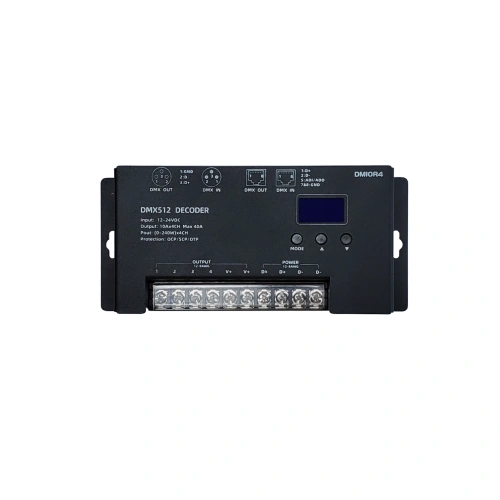

DM10R4 DMX Decoder

DM10R4 DMX Decoder

DMX Low-Voltage External Control 4-Channel Constant Voltage Driver
– The OLED display combined with touch-sensitive buttons offers an intuitive interface and easy operation.
– It has overcurrent, short-circuit, and over-temperature protection with automatic recovery, along with a fault alert feature.
– Supports both manual addressing and long-distance automatic addressing.
– The port refresh rate can be adjusted, with a maximum of up to 4KHz.
– The DMX interface provides options for a 3-pin XLR or RJ45, with built-in enhanced surge protection.

Category: Tag:

Description

Application

The SEEKWAY DM10R4 is a basic decoder that adheres to the DMX512 international standard protocol. It can precisely control RGB 3-primary-color lighting fixtures, equipped with a protected RS485 signal conversion circuit to achieve delicate brightness control. With its high-speed port refresh rate and enhanced smoothness of low-gray-level changes, it ensures the rapid and accurate transmission of signals. It also features anti-reverse and short-circuit protection functions to ensure safe usage. Moreover, it supports connection with a master controller for remote control, making it an ideal choice for various occasions such as professional stage lighting, architectural lighting, and commercial lighting.

Specifications

Input Voltage:DC12～24VTransmission Protocol:DMX512
Output Current:MAX 10A per channelNet Product Weight:270g
Output Power：960WProduct Dimensions:125L*55W*45H(mm)
Gray Scale Levels:256 levels corrected to 65536 levels, Gamma 2.2Operating Temperature:-25℃～65℃
